* 8M0030550 Mercury Marine RC OB Trim/160D

8M0030550 Mercury Marine RC OB Trim

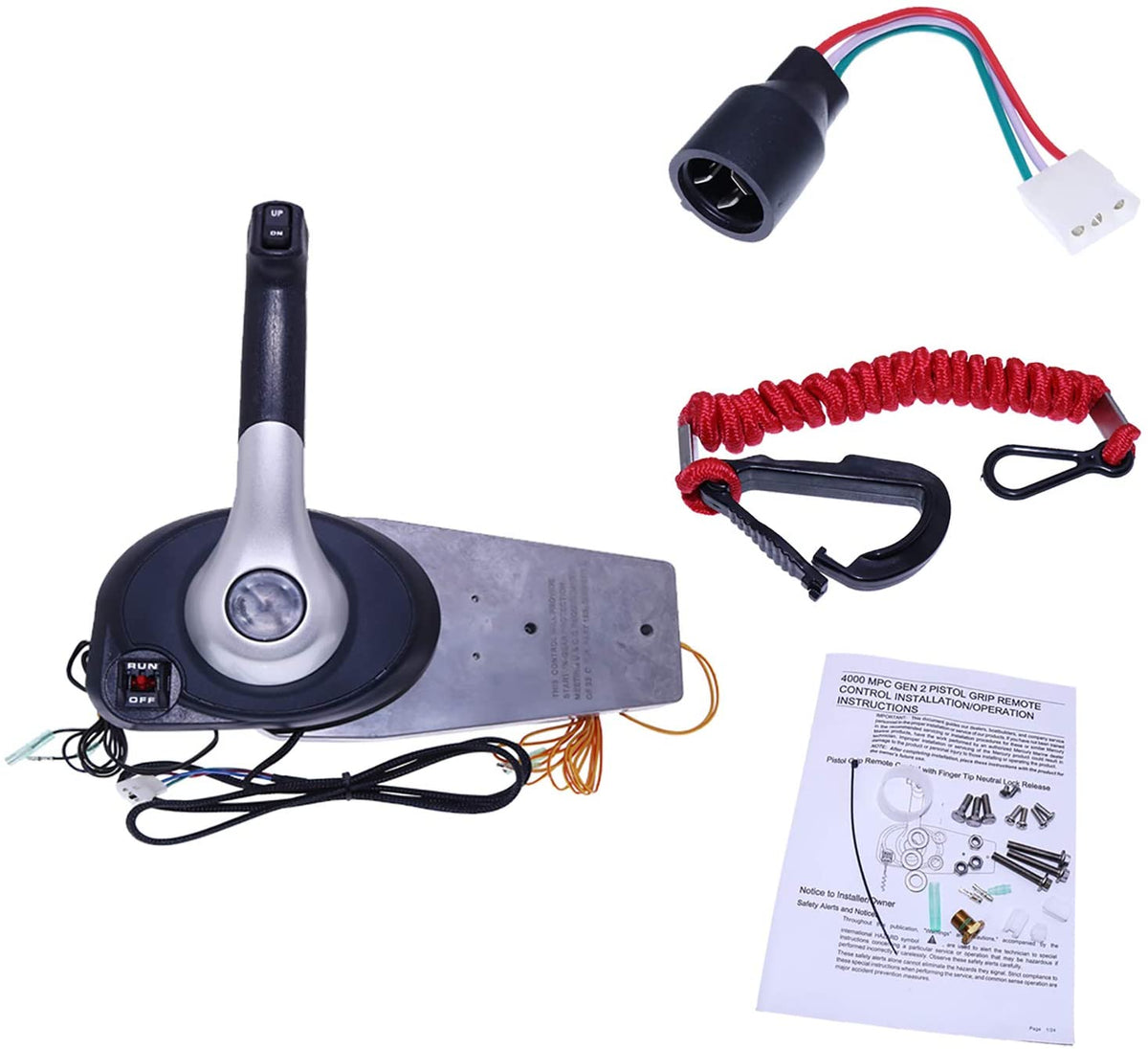

Panel Mount Control features a chrome handle and comes with a 4ft Trim Harness with the 3 pin Molex Connector. All installations require a separate Ignition/Choke assembly and T/S cables to complete the installations. The neutral safety switch leads are 6.5ft and have bullet connector on the ends. The lanyard switch leads also have bullet style connector at the ends.

The control fits all the current Mercury/Marine outboards (with integral trim) and 1993 and newer Force outboards 40HP and higher utilizing Mercury Style cables (with power trim)

GEN II T/S Cables

This control fits Mercury and Mariner outboards (with integral trim) and 40hp Force outboards (1993 and newer) using Mercury/Quicksilver style cables with power trim. Panel mount controls expose only the throttle and shift lever with the lanyard stop switch mounted bezel keeping the cable mechanism hidden behind the boat side wall. Control 8M030550 requires the use of a separate ignition/choke assembly and connects to Gen II throttle and shift cables.
