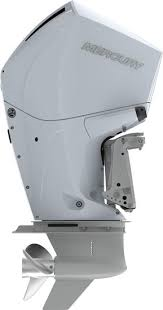

12250048A MERCURY MARINE OUTBOARD ENGINE 225CXL 4 STROKE COLD FUSION WHITE #77

Version:1.0 StartHTML:000000238 EndHTML:000015370 StartFragment:000011662 EndFragment:000015271 StartSelection:000011662 EndSelection:000015252 SourceURL:https://www.mercurymarine.com/en/us/engines/outboard/fourstroke/175-300-hp/ FourStroke 175-300hp | Mercury Marine

• Engine Details

  The undisputed pound-for-pound champ – the lightest in its class by nearly 60 pounds! Great for aluminum console, deck, fish & ski, inflatable rigid hull, inshore fishing, multi-species fishing, and runabout boats and tritoons.

  Specifications - 225

  HP / kW	225 / 168
  Engine type	V6
  MidSection	Conventional MidSection
  Displacement (CID/CC)	209 CID
  Displacement (L)	3.4L
  Cylinder Configuration	V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
  Full throttle RPM	5200-6000
  Air induction	Performance-Tuned Long-Runner Intake Manifold
  Fuel induction system	Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
  Alternator amp / Watt	85-amp (1071 Watt) with Idle Charge
  Recommended fuel	Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
  Recommended oil	NMMA Certified FCW SAE 10W-30
  Engine protection operator warning system	SmartCraft Engine Guardian
  Compatible with SmartCraft digital technology	Yes
  Starting	Electric Start with SmartStart Protection
  Controls	Remote Mechanical or Digital Throttle & Shift (DTS)
  Steering	Big Tiller (optional) Hydraulic (standard) Joystick Piloting for Outboards Power (optional)
  Shaft length	20" / 508 mm 25" / 635 mm 30" / 762 mm
  Gearcase ratio	1.85:1
  Dry weight *Lightest model available	475 lbs / 216 kgs
  CARB star rating	3
  Bore and stroke	3.6 in x 3.4 in / 92 mm x 86 mm
  Ignition	SmartCraft PCM 112 Digital Inductive
  Cooling system	Water-cooled with thermostat
  Gear shift	F-N-R
  Gearcase options	4.8"
  Trim system	Power trim and tilt
  Exhaust system	Through prop
  Counter Rotation	Available
  Color	Cold Fusion White Pearl Fusion White Phantom Black Warm Fusion White
  Lubrication system	Integrated wet sump
  Oil Capacity	7.0 Quarts / 6.6 Liters
  Maximum Trim Range	20° (-6° to 14°)
  Maximum Tilt Range	73° (-6° to 67°)
